Product Details

●For installation in split-height preWall construction in front of a solid or drywall construction .

● For a floor construction 80mm-200mm .

●For wall-hung WC with fastening distance 180mm or 230mm .

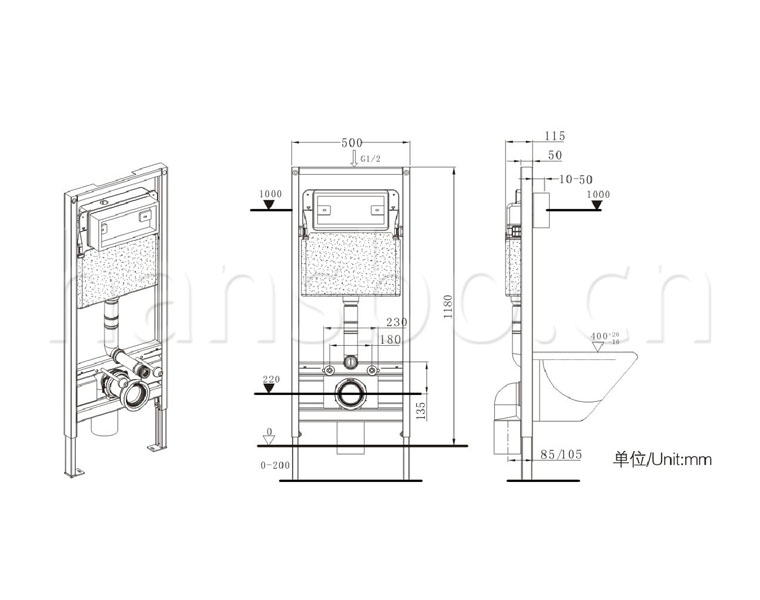

● Frame height 1140mm

● Adjustable flush volume.

● Can match 8601 series big press panel , single and double flush options.

● Water supply connection at centre back of at the top .

● Self-supporting frame .

●Cistern heat preservation ,anti-condensation protection .

● Powder-coated ，color Hansbo blue .

● Galvanized leg supports , adjustable 0-200mm .

● 1/2” x 3/8”Water supply angle valve

● Flush outlet bend ，Ф90/110 or HDPE Ф 90/110，options .

● Flush connect pipe , Ф45,standard length 180mm , can order 250mmlength .

● Flush outlet pipe , Ф90,standard length 180mm , can order 250mmlength .

● Flush connect pipe rubber ，flush outlet pipe rubber .

● Maintain window protect frame , ABS material，can be cut according to the actually height .

● Protection plug .

● 2group rods M12 for ceramics fastening .

● 2 group “L”sharp frame screw .

● 4group setscrew .

●Maximum flush can adjustable between 6L/7.5L .

●Maximum flush can adjustable between 3L/4L .

● Factory flush setting 3L/6L
